4TH WEEK REPORT OF SENGKUANG MINI PROJECT

Weekly Report of Sengkuang's Plant: Week 4
Date of 4th week: 16 May 2017

Each of the plant are exposed to the same atmosphere condition.

Figure 1: The progress of each plant on the 4th week.

Pot	Soil Sample	pH Value		Germination Rate (%)	Average plants’ height (cm)	Soil Texture
		pH Meter	pH Paper
A	FSSA	6.14	6	40	16.8	Sandy loam
B	Mengkabung	2.47	3	0	0	Clay loam
C	PPIB’s Parking Area	4.87	5	26.67	11.2	Loamy fined sand
D	Tepi Tasik FSSA 2	3.51	4	33.33	11.7	Sandy loam
E	Tepi Tasik FSSA	3.46	4	13.33	12	Loam

Sieve Analysis Test Result

A sieve analysis test were conducted to assess each of soil sample particle distribution.

Soil	Sieve no.	Sieve opening mesh size (mm)	Mass of soil retained on each sieve (g)	Percent of mass retained on each sieve (Rn)	Cumulative percent retained (% cumulative passing=100%-% cumulative retained)	Percent finer 100-∑Rn
Pot A -PPIB	10	2	0.35	0.3498	0.3498	99.6502
	18	1	2.37	2.3688	2.7186	97.2814
	70	0.212	25.98	25.9670	28.6856	71.3144
	120	0.125	23.35	23.3383	52.0239	47.9761
	230	0.063	25.98	25.9670	77.9909	22.0091
	Pan		22.02	22.0090	100	0.0
Pot B-FSSA	10	2	2.42	2.2640	2.2640	97.736
	18	1	11.19	10.4687	12.7327	87.2673
	70	0.212	62.54	58.5087	71.2414	28.7586
	120	0.125	21.21	19.8428	91.0842	8.9158
	230	0.063	7.73	7.2317	98.3159	1.6841
	Pan		1.8	1.6839	99.99	0.0002
Pot C-Mengkabung	10	2	1	2.0328	2.0328	97.9672
	18	1	2.37	4.8178	6.8506	93.1494
	70	0.212	11.9	24.1904	31.041	68.959
	120	0.125	17.99	36.5702	67.6112	32.3888
	230	0.063	14.59	29.6587	97.2699	2.7301
	Pan		1.343	2.7301	100	0.0
Pot D-Tepi Tasik FSSA	10	2	14.02	33.0660	33.0660	66.934
	18	1	11.19	26.3915	59.4575	40.5425
	70	0.212	12.87	30.3538	89.8113	10.1887
	120	0.125	2.83	6.6745	96.4858	3.5142
	230	0.063	0.77	1.8160	98.3018	1.6982
	Pan		0.72	1.6981	99.99	0.0001
Pot E-Tepi Tasik FSSA 2	10	2	2.99	7.9268	7.9268	92.0732
	18	1	4.74	12.5663	20.4931	79.5069
	70	0.212	25.67	68.0541	88.5472	11.4528
	120	0.125	1.66	4.4008	92.948	7.052
	230	0.063	1	2.6511	94.5991	4.4009
	Pan		1.66	4.4008	99.99	0.0001

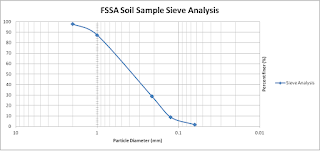

Particle size distribution: Graphical representation

Pot A- PPIB's Parking Area:

Based on the soil texture analysis that we have done on the first week through our PPIB soil jar test analysis and the calculation using soil texture triangulation. The texture that result from our jar test analysis is loamy fined sandy . Loamy fined sandy composed mostly of sand with the particle size is larger than 63 µm, silt with particle size larger than 2 µm, and a smaller amount of clay with particle size is larger than 2 µm.

As can be seen from the sieve result, there were many types of sand size. Particles that left on the first, second and third sieve plate is coarse sand while particle that left on the fourth sieve plate is  medium sand and particles left on fifth sieve plate is a fine sand. The last plate which is pan is the amount of particle that has size of smaller than 63 µm . That means the particle left on the pan is silt. For the clay, since clay particle is less than 2 µm, it is hard to say that our soil has clay particle. This is because the smaller opening mesh size is to big which is 63 µm. It may exist in our soil but , our group confirm that our soil texture is a loamy fined sand based on our result of jar test and soil triangular experiment.

Pot B-Fssa

Based on the soil texture analysis that we have done on the first week through our FSSA soil jar test analysis and the calculation using soil texture triangulation. The texture that result from our jar test analysis is sandy loam . Sandy loam composed mostly of sand with the particle size is larger than 63 µm, silt with particle size larger than 2 µm, and a smaller amount of clay with particle size is larger than 2 µm.

From the sieve result, there were many types of sand size. Particles that left on the first, second and third sieve plate is coarse sand while particle that left on the fourth sieve plate is  medium sand and particles left on fifth sieve plate is a fine sand. The last plate which is pan is the amount of particle that has size of smaller than 63 µm . That means the particle left on the pan is silt. For the clay, since clay particle is less than 2 µm, it is hard to say that our soil has clay particle. This is because the smaller opening mesh size is to big which is 63 µm. It may exist in small volume but our group confirm that our soil texture is a sandy loam based on our result of jar test and soil triangular experiment.

Pot C: Mengkabung

Based on the soil texture analysis that we have done on the first week through our Mengkabung soil jar test analysis and the calculation using soil texture triangulation. The texture that result from our jar test analysis is a clay loam.

Based on the table, the particle that left in the first and the second sieve plate are the remaining coarse particles while in the third until sixth are the fine particles. Most of the fine particles of soil was retained in 125µm sieve plates followed by 63µm sieve plate, 212µm  and 1µm. For the coarse particles, majority of them were retained in 2mm compared to 1mm sieve plate. The soil retained in 2mm and 1mm were known as coarse sand while the 212µm, 125µm and 63µm known as fine sand while the soil retained in pan is silt because it is lower than 63µm

Pot D: Tepi Tasik FSSA

Based on the soil texture analysis that we have done on the first week through our Tepi Tasik FSSA soil jar test analysis and the calculation using soil texture triangulation. The texture that result from our jar test analysis is loam . Loam is soil composed mostly of sand (particle size > 63 µm), silt (particle size > 2 µm), and a smaller amount of clay (particle size < 2 µm). Its composition is about 40–40–20% concentration of sand-silt-clay, respectively.

Most of the fine particles of soil was retained in 212µm sieve plate then followed by 125µm sieve plates, 1mm sieve plate, 63µm sieve plate and pan. For the coarse particles, majority of them were retained in 1mm compared to 2mm sieve plate. The soil retained in 2mm and 1mm were known as coarse sand while the 212µm, 125µm and 63µm known as fine sand while the soil retained in pan is silt because it is lower than 63µm .There is no clay particles retained in the soil in the sieve plate. From this we can conclude that our soil has more sand compared to silt and clay. So that it is a loamy soil as a same result we obtain by soil triangular texture experiment.

Pot E: Tepi Tasik FSSA 2

Based on the soil texture analysis that we have done on the first week through our Tepi Tasik 2 soil jar test analysis and the calculation using soil texture triangulation. The texture that result from our jar test analysis is sandy loam . Sandy loam composed mostly of sand with the particle size is larger than 63 µm, silt with particle size larger than 2 µm, and a smaller amount of clay with particle size is larger than 2 µm.

From the sieve result, there were many types of sand size. Particles that left on the first, second and third sieve plate is coarse sand while particle that left on the fourth sieve plate is  medium sand and particles left on fifth sieve plate is a fine sand. The last plate which is pan is the amount of particle that has size of smaller than 63 µm . That means the particle left on the pan is silt. For the clay, since clay particle is less than 2 µm, it is hard to say that our soil has clay particle. This is because the smaller opening mesh size is to big which is 63 µm. It may exist in small volume but our group confirm that our soil texture is a sandy loam based on our result of jar test and soil triangular experiment
